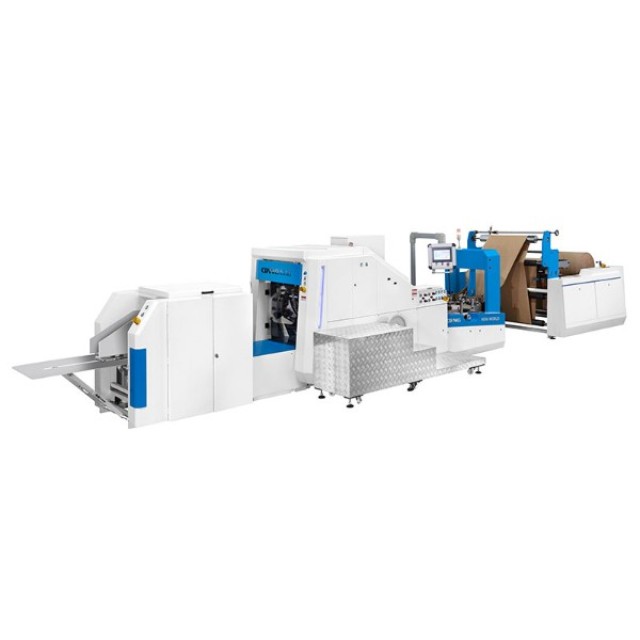

paper bag by side gluing, tube forming, tube cutting, the bottom indenting, the bottom gluing, bottom forming, and finishing bag collection.The whole machine adopts a Japanese YASKAVAelectronic control system, controlled by servo motor-produced paper bag products, high accuracy, strong stability, simple maintenance, production efficiency, is the most ideal equipment for printing plants and paper bag manufacturers.
| Model | New world -B220 | New world -B330 | New world -B400 | New world -B450 | New world -B460 | New world -B560 |
| Paper bag length | 191-430mm | 280-510mm | 280-600mm | 280-600mm | 320-770mm | 320-770mm |
| Paper bag width | 80-200mm | 150-330mm | 150-400mm | 150-450mm | 220-460mm | 240-560mm |
| Paper bag bottom width | 50-120mm | 70-150mm | 90-200mm | 90-200mm | 90-260mm | 90-260mm |
| Paper thickness | 45-150g/m2 | 60-150g/m2 | 70-150g/m2 | 70-150g/m2 | 70-150g/m2 | 80-150 g/m2 |
| Max Machine Speed | 280pcs/min | 220pcs/min | 200pcs/min | 200pcs/min | 150pcs/min | 150pcs/min |
| Paper roll width | 290-710mm | 470-1050mm | 510-1230mm | 510-1230mm | 650-1470mm | 770-1670mm |
| Roll paper diameter | 1500mm | 1500mm | 1500mm | 1500mm | 1500mm | 1500mm |
| Machine power | 3 Phase,9kw | 3 Phase,11kw | 3 Phase,15.5kw | 3 Phase,15.5kw | 3 Phase,25kw | 3 Phase,27kw |
| Machine weight | 5600kg | 8000kg | 8000kg | 9000kg | 12000kg | 13000kg |
| Machine size | 8600×2600×1900 mm | 9500×2600×1900 mm | 9500×2600×1900 mm | 10700×2600×1900 mm | 12000×4000×2000 mm | 13000×2600×2000 mm |
NEW WORLD-B series it uses paper roll in blank or printed as raw material, consists of automatic centre forward glue, printing tracking, fixed length and cutting, bottom indentation, folding bottom, bottom glue. This machine really realized the full automation production, can effectively save the labor cost.
NEW WORLD-AS is This machine is designed to manufacture square bottom paper bags with flat handle folded inside from paper roll,paper patch roll and flat handle paper roll,and it is an ideal equipment for producing paper handbags fast.By implementing steps including handle making.
This machine forming the paper bag in one process from roll paper, edge folding, tube forming, cutting, gluing, bottom folding, bottom gluing and finishing bag. Easy operation, low power consumption, high efficiency. It is an ideal machine for producing food bags like bread bags, KFC bags and McDonald’s bags.
