NEW WORLD AS PAPER BAG MACHINE FLAT HANDLE FOLDED INSIDE

NEW WORLD AS PAPER BAG MACHINE FLAT HANDLE FOLDED INSIDE

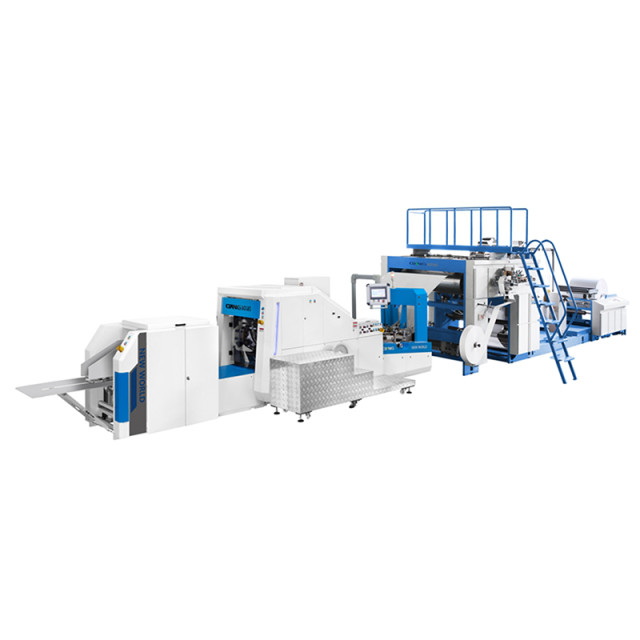

NEW WORLD-AS is This machine is designed to manufacture square bottom paper bags with flat handle folded inside from paper roll,paper patch roll and flat handle paper roll,and it is an ideal equipment for producing paper handbags fast.By implementing steps including handle making.

Product Application

NEW WORLD-AS is This machine is designed to manufacture square bottom paper bags with flat-rope handles from paper roll,paper patch roll and flat handle paper roll,and it is an ideal equipment for producing paper handbags fast.By implementing steps including handle making.
Handle application,tube forming,tube cutting and bottom forming within a fully automatic process,this machine can effectively save labor costs.Distinct flat-rope handle making process and special bag counting function,greatly improve packing efficiency of finished paper bags.Thanks to perfect technologies and fast production speed,this machine can produce paper handbags with high quality in many different forms,which are especially suitable for food and clothing industries.
By directly making flat-rope handles on paper web,customers can not only no longer rely on the traditional external handle making machine,but also be able to save 50% patch paper.Moreover,it can make folded or unfolded flat handle in the same machine,assisting users to balance traditional bag-using habit with highly effective packaging and transportation.

Main Technical Variables

Model New World-AS330 New World-AS400 New World-AS460 New World-AS560
Paper Diameter ≤1500mm ≤1500mm ≤1500mm ≤1500mm
Core Inner Diameter         ∅76mm ∅76mm ∅76mm ∅76mm
Paper Weight 80-140gsm 80-140gsm 90-140gsm 90-140gsm
Paper Bag Width 200-330mm with handle 200-400mm with handle

220-460mm with handle

280-560mm with handle
  150-330mm without handle 150-400mm without handle

220-460mm without handle

280-560mm without handle
Paper Tube Length 280-430mm with handle 280-550mm with handle

320-670mm with handle

320-670mm with handle
  280-530mm without handle 280-600mm without handle

320-770mm without handle

320-770mm without handle
Bottom Width Of Paper Bag 80-180mm 90-200mm

90-260mm

90-260mm
Machine Speed 150pcs/min 120pcs/min 120pcs/min 120pcs/min
Total Power 25kw 29kw 29kw 29kw
Machine Weight 20000kgs 22000kgs 23000kgs 24000kgs
Machine Dimensions 15000X4500X3400mm 16000X5000X3400mm 16500X5500X3500mm 16500X5500X3500mm

Bag Type - New World-AS series can make
