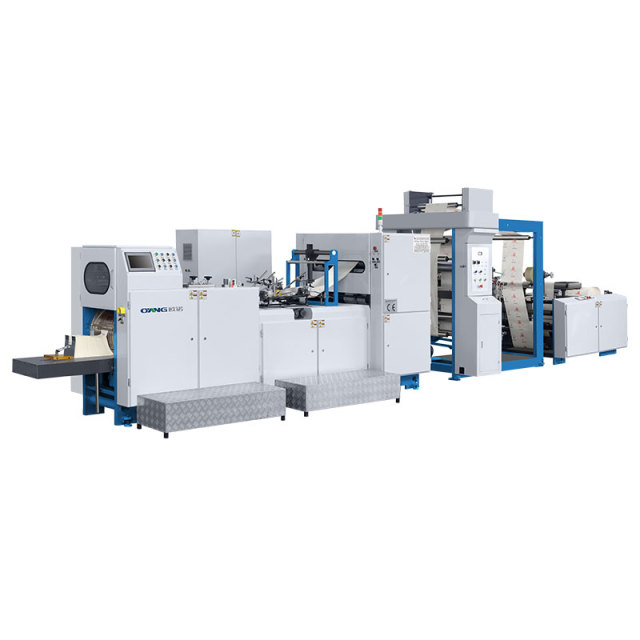

NEW WORLD C Series-Adjustable roll to sharp bottom paper bag making machine

NEW WORLD C Series-Adjustable roll to sharp bottom paper bag making machine

This machine forming the paper bag in one process from roll paper, edge folding, tube forming, cutting, gluing, bottom folding, bottom gluing and finishing bag. Easy operation, low power consumption, high efficiency. It is an ideal machine for producing food bags like bread bags, KFC bags and McDonald’s bags.

Online Inquiry Contact Us

Product Application

This machine is designed to manufacturer sharp bottom paper bag from paper roll,and it is suitable for kraft paper,ribbed kraft paper,grease-groof paper,coated paper,medico paper&etc.

By implementing step including roll feeding,side gluing,perforating,tube forming,can effective save labor costs,it has advantage of easy operation,high efficiency,more steady,it is an ideal machine for make different kind of paper bag.snack paper bag,food paper bag,bread paper bag.dry fruit paper bag and eco-friendly paper bag.

Main Technical Variables

Model New world -C270 New world -C330
Paper Thickness Range 30-100GSM 30-100GSM
Paper Bag Width Range 80-270mm 80-330mm
Paper Bag Length Range 120-400mm 120-720mm
Side Folding Range 0-50mm 0-50mm
Production Precision ±0.2mm ±0.2mm
Machinery Speed 150-500 pcs /min 150-500 pcs /min
Maximum paper roll Width 900mm 1000mm
Maximum Paper roll Diameter 1200mm 1200mm
Total Power 380V,3 Phase 16kw         380V,3 Phase 16kw
Machine Weight 5000kg 5500kg
Machine size 7300×2000×1850 mm 7300×2100×1900 mm

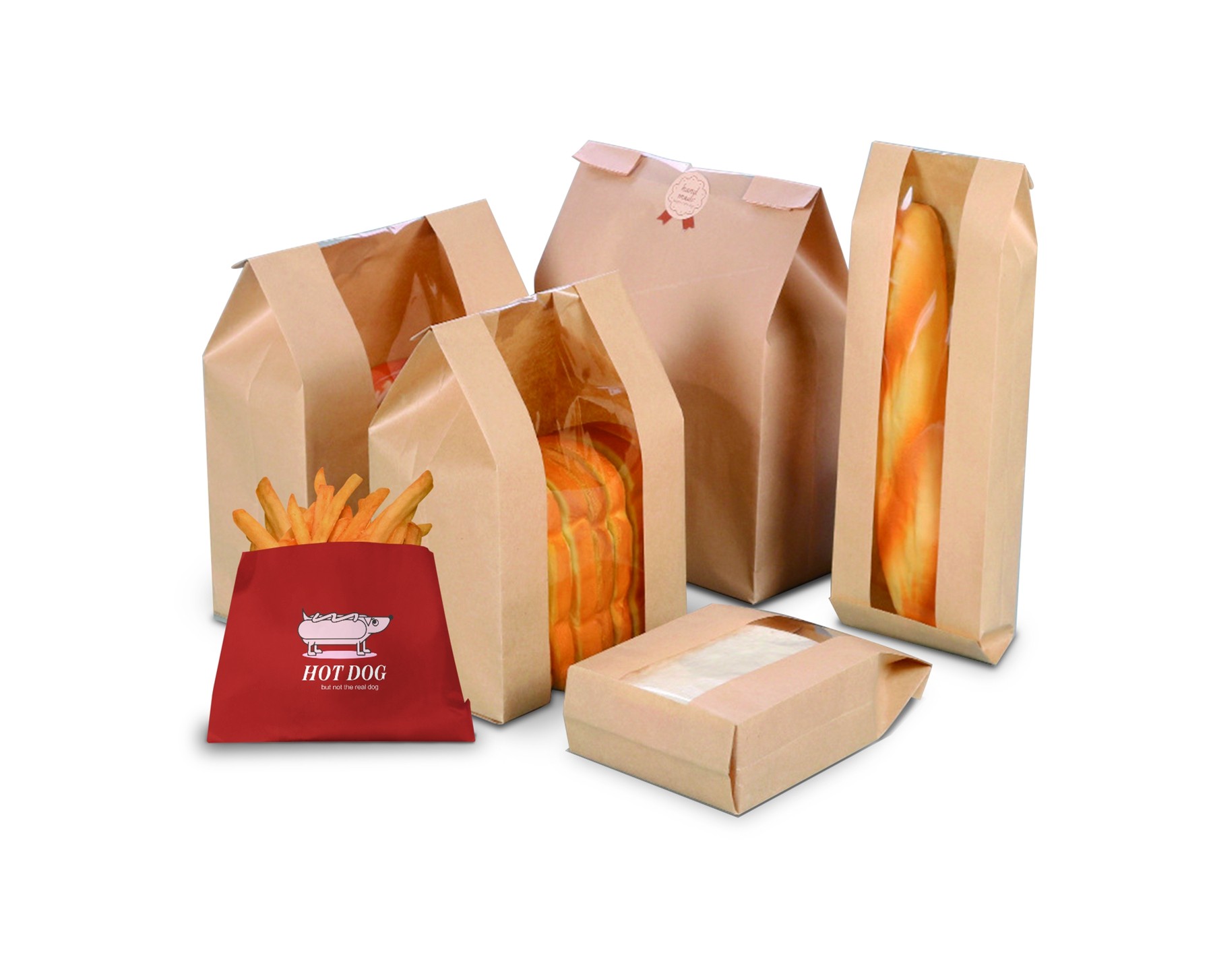

Bag Type - New World-C series can make
