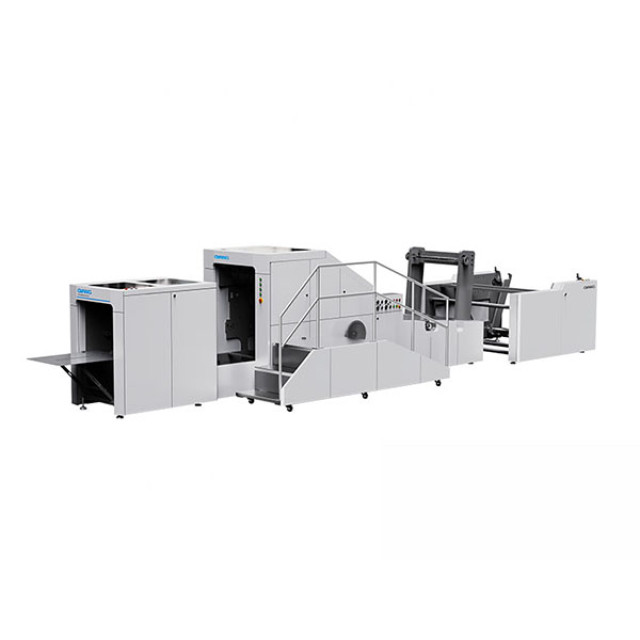

Smart 17 - NEW WORLD B SERIES Semi-automatic Roll-fed Paper Bag Machine (Without Handle)

Smart 17 - NEW WORLD B SERIES Semi-automatic Roll-fed Paper Bag Machine (Without Handle)

NEW WORLD - B series machine is designed to manufacture square bottom paper bags without handles from paper roll,and it is an ideal equipment for producing producing various sized paper bags fast.

Product Description

NEW WORLD - B series machine is designed to manufacture square bottom paper bags without handles from paper roll,and it is an ideal equipment for producing producing various sized paper bags fast. By implementing steps including paper feeding,tube forming,tube cutting and bottom forming inline,this machine can effectively save labor costs. The equipped photoelectric detector can correct cutting length,so as to ensure cutting precision. This machine can process very thin paper,as well as produce paper bags very fast,thus this machine is especially suitable for being applied in food industries.

Product Advantages

1. Save land area
2. Suitable for thin paper
3. High production efficiency
4. Stable machine operation
5. Can make different bag bottoms
6. Wide range of bag making dimensions

Product Parameter

Model No.

B220

B330

B400

B 450

B 460

B560

Paper Bag Length

190-430mm

280-530mm

280-600mm

280-600mm

320-770mm

320-770mm

Paper Bag Width

80-220mm

150-330mm

150-400mm

150-450mm

220-460mm

280-560mm

Paper Bag Bottom Width

50−120mm

70-180mm

90-200mm

90-200mm

90-260mm

90-260mm

Paper Thickness

45-150g/

60-150g/㎡

70-150g/

70-150g/

70-150g/

80-150g/

Machine Speed

280pcs/min

220pcs/min

200pcs/min

200pcs/min

150pcs/min

150pcs/min

Paper Roll Width

290-710mm

470-1050mm

510-1230mm

510-1230mm

650-1470mm

770-1670mm

Roll Paper Diameter

≤1500mm

≤1500mm

1300mm

≤1500mm

≤1500mm

≤1500mm

Machine Power

380V15kw

380V8kw

380V15.5kw

380V 15.5kw

380V 25kw

380V 27kw

Machine Weight

5600kg

8000kg

9000kg

9000kg

12000kg

13000kg

Machine Size

L8.6×W2.6×H1.9M

L9.5×W2.6×H1.9M

L10.7×W2.6×H1.9M

L10.7×W2.6×H1.9M

L12×W4×H2M

L13×

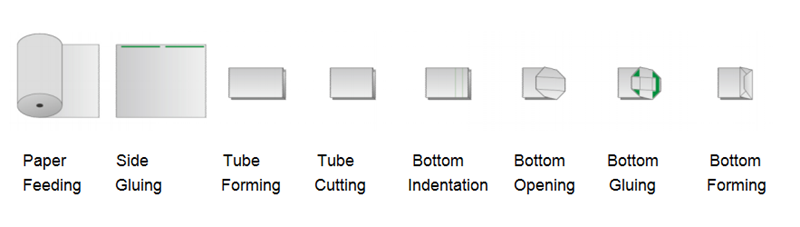

Bag Making Process

Bag Type

Shopping Bag, Clothing Bag, Food Bag, Gift Bag, Take Away Bag
