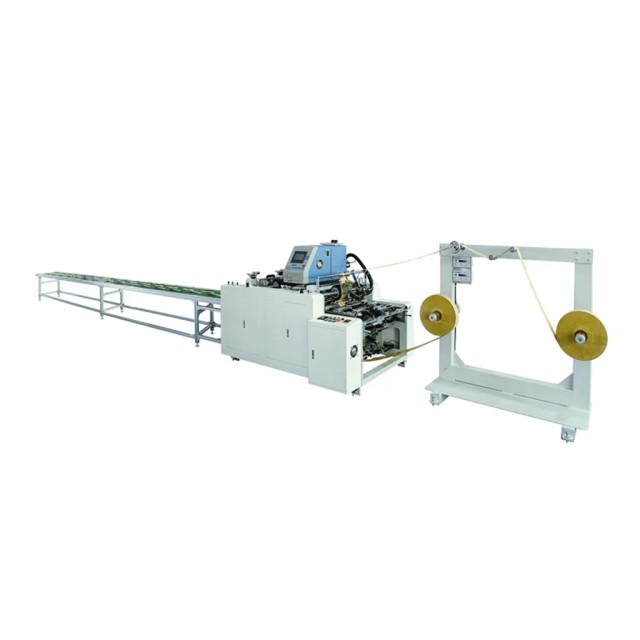

Paper Twisted Handle Making Machine

Paper Twisted Handle Making Machine

This machine is mainly supporting semi-automatic paper bag machines. It can quickly produce paper handle with twisted rope, which can be attached onto the paper bag without handles in further production and make it into paper handbags. This machine takes two narrow paper rolls and one paper rope as raw material, sticks scraps of paper and paper rope together, which will be cut off gradually to form paper handles. In addition, the machine also has automatic counting and gluing functions, which can greatly improve the efficiency of subsequent processing operations of users.

Online Inquiry Contact Us

Product Application

This machine is mainly supporting semi-automatic paper bag machines. It can quickly produce paper handle with twisted rope, which can be attached onto the paper bag without handles in further production and make it into paper handbags. This machine takes two narrow paper rolls and one paper rope as raw material, sticks scraps of paper and paper rope together, which will be cut off gradually to form paper handles. In addition, the machine also has automatic counting and gluing functions, which can greatly improve the efficiency of subsequent processing operations of users.

Main Technical Variables

Paper Roll Core Diameter Φ76 mm(3'')
Max. Paper Roll Diameter Φ1000mm
Production Speed 10000pairs/hour
Power Requirements 380V
Total Power 7.8KW
Total Weight Approx.1500kg
Overall Dimension L4000*W1300*H1500mm
Paper  Length 152-190mm(Optional)
Paper Rope Handle Spacing 75-95mm(Optional)
Paper Width 30/40mm
Paper Rope Height 100mm
Paper Roll Diameter 3.0-4mm
Glue Type Hot-melt glue

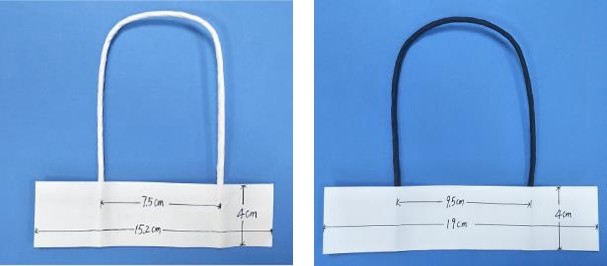

Sample Picture
