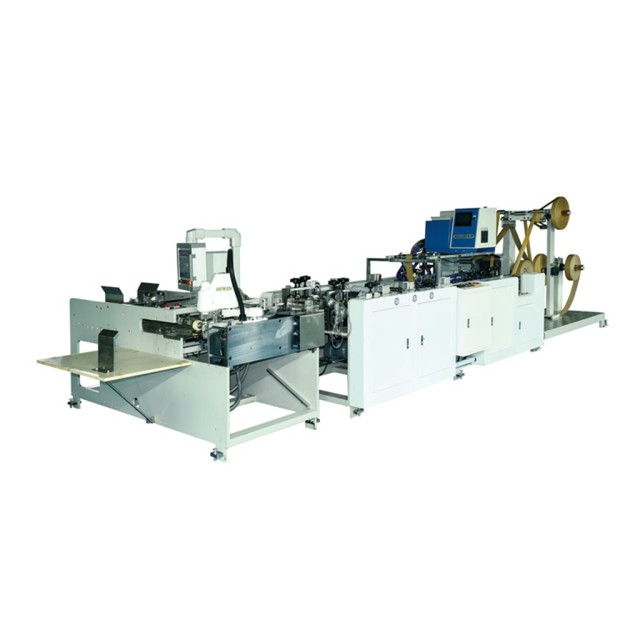

This machine mainly work with semi-automatic paper bag machines. Through complex processes but with simple operation, it can produce flat paper bag handle and then paste it to the paper bags in line. Hence save lots of labor cost for users.
This machine mainly work with semi-automatic paper bag machines. Through complex processes but with simple operation, it can produce flat paper bag handle and then paste it to the paper bags in line. Hence save lots of labor cost for users.

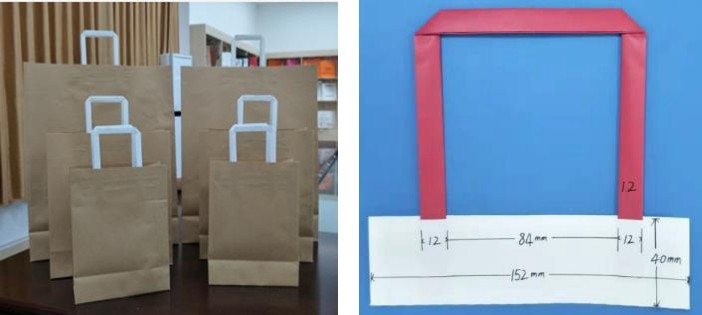

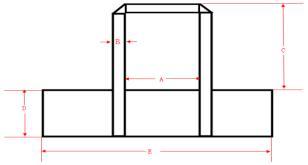

| Rope spacing(A) | 84mm | |
| Rope width(B) | 12mm | |
| Paper rope height(C) | 100mm | |
| Paper width(D) | 40mm | |
| Paper length(E) | 152mm | |
| Rope length | 352mm | |
| Bag width | 250-400mm | |
| Bag height | 250-450mm | |
| Top opening size | Over 130mm | |
| Production speed | 35~40 pcs/min | |
| Servo motor power | 750W | |
| Total power | 380V，10KW，50HZ | |
| Overall dimension | L7000*W1600*H1500mm | |
The ONL-1600A Slitter Rewinding Machine suitable for Printing&Packaging Industry, converting jumbo roll to narrow roll(The minimum width 30mm，the maximum diameter 1000mm).Jumbo roll material, such as cardboard paper ,kraft paper,coated paper, single silicon paper etc slitting & rewinding.
This machine mainly support the paper rope machine.Through the high speed spinning of the axes of the machine,it rewind the paper rope roll which was made by paper rope machine to enlarge the diameter and inner diameter of the final paper rope roll,and it also can avoid the knot of the original paper rope roll.So the machine can enhance the productivity and improve the quality.
This machine designed to work with our paper bag machine, can produce paper rope handles and then stick the handles to paper bags to make paper bag with handle in line. This machine takes two narrow paper rolls and one paper rope roll as raw material, sticks paper belts and paper rope together, which will be cut off gradually to form paper handles. In addition, the machine also has automatic counting and gluing functions, which can greatly improve the efficiency of subsequent processing operations of users.
