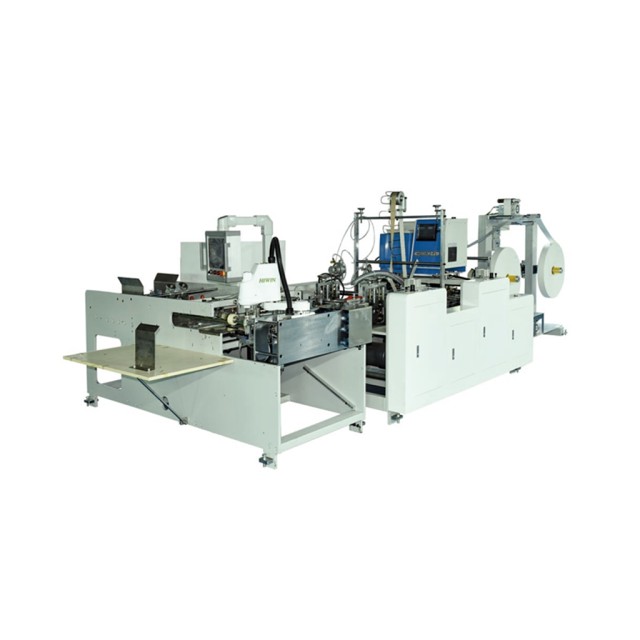

Automatic Twisted Paper Rope Handle Making Pasting Machine

Automatic Twisted Paper Rope Handle Making Pasting Machine

This machine designed to work with our paper bag machine, can produce paper rope handles and then stick the handles to paper bags to make paper bag with handle in line. This machine takes two narrow paper rolls and one paper rope roll as raw material, sticks paper belts and paper rope together, which will be cut off gradually to form paper handles. In addition, the machine also has automatic counting and gluing functions, which can greatly improve the efficiency of subsequent processing operations of users.

Online Inquiry Contact Us

Product Application

This machine designed to work with our paper bag machine, can produce paper rope handles and then stick the handles to paper bags to make paper bag with handle in line. This machine takes two narrow paper rolls and one paper rope roll as raw material, sticks paper belts and paper rope together, which will be cut off gradually to form paper handles. In addition, the machine also has automatic counting and gluing functions, which can greatly improve the efficiency of subsequent processing operations of users.

Main Technical Variables

Handle length（A） 152/190mm
Rope spacing(B) 75/95mm
Paper width(C) 30/40mm
Paper rope length 360mm
Paper rope height(C1) 100mm
Rope diameter Φ2.5~5mm
Bag width 250-400mm
Bag height 250-450mm
Top opening size Over 130mm
Production speed 30-35 pcs/min
Servo motor power 750W
Total power 380V，10KW，50HZ
Overall dimension L6000*W1600*H1500mm

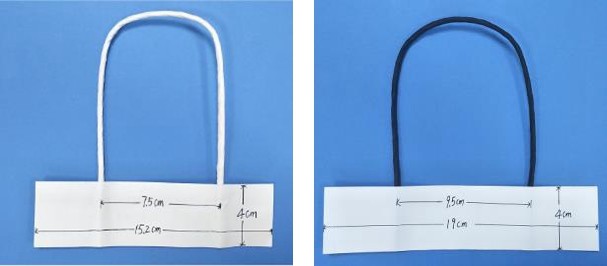

Sample Picture
